The MH370 Final Descent Phase:
Illustrative Suboptimal Scenarios

Geoff Hyman
(report prepared in July 2015)
Report available here.

Preamble by Duncan Steel:  On the eve of the second anniversary of the disappearance of MH370, there are still various outstanding puzzles which, if resolved, could aid in the ongoing search for the aircraft.

One of these puzzles is what happened when the aircraft’s fuel was finally exhausted: did it undergo a dive (understood to mean a rapid uncontrolled descent to the ocean surface) or did it glide to the surface? If it was known which of those descent modes occurred then a limit might be placed on how far from the 7th ping arc the aircraft could have ended up. Obviously this has significance in terms of setting a limit to the transverse distance away from that arc that the ocean floor search should cover, and so understanding why it has not been found thus far.

A rapid dive/descent is evidenced by various pieces of information, including: (a) The two final BFO values, spaced by eight seconds, which are indicative of a downward acceleration of about 0.7g, if they are interpreted as being valid indicators of the aircraft speed; (b) The fact that the final SATCOM logon was not completed, which should have occurred within about 90 seconds of the process that prompted the above two BFO values; (c) Simulator runs that show a spiral dive commencing once all power is lost; (d) Fragments of the aircraft now being found, which might be interpreted as implying a very violent crash in which the aircraft disintegrated. These matters have largely been discussed in previous posts here. This dive scenario is consistent with there being no conscious/able person left at the controls of the aircraft in this very final phase of the flight.

Nevertheless the possibility exists, according to the limited information available, that a pilot was still at the controls in this final phase. Many people have expressed an opinion that this is what actually occurred, but this is not a concern to me here because generally such people are expressing pre-conceived (or mis-conceived) opinions based on little or no definitive information. What is significant, from my perspective, is that various media reports have indicated that Australian authorities – both the ATSB and higher up within the Federal Government – consider that a final glide scenario might indeed have occurred. My opinion is that it did not, but I have not myself looked at the possibility with the necessary critical eye.

One person who has considered the glide possibility with the needed veracity and capability is Geoff Hyman, a member of the Independent Group (IG). Geoff drafted a report on this matter in July last year, giving it the title that appears at the head of this post.

The bottom line from Geoff’s analysis is that if no glide occurred, then MH370 must surely lie within 40NM of the 7th arc; his scenarios featuring only dives do not take the aircraft that far from the arc. A dive followed by a glide (assumedly requiring a pilot in control, and fitting against the BFO values mentioned previously) could have taken MH370 rather further from the 7th arc. These matters are all detailed in Geoff’s report, which is available by clicking here (5pp; 364 kB download).

Geoff considered just five scenarios in his analysis, which is likely more than adequate, but he has spelled out his methodology very clearly so that others might be able to repeat the analysis to verify the results, and also try other plausible sets of input parameters. That’s proper science, folks!

Where is MH370?

Richard Godfrey
14th February 2016

The search for MH370 continues without success. In a previous post dated 5th January 2016, I asked the question “Is the search for MH370 being conducted in the right area?” Henrik Rydberg of the Independent Group (IG) ran a large Monte Carlo simulation to show that the feasible latitude distribution at 00:11 UTC (i.e. at the 6th Arc) ranged from 29S to 40S. There are, of course, many conceivable flight paths depending on assumed values for the location of the Final Major Turn (FMT) southwards, the speed mode, the autopilot mode, the fuel performance, the altitude, step climbs, lateral offsets, winds, magnetic declination, and whether there was a pilot at the controls or not.

Numerous analyses have been performed, based on differing assumptions, to try and determine (so far as is possible given the limited data, and its inherent imprecision) the final resting place of MH370. The key assumptions that must be made derive from the answers adopted when asking the following questions:

• When and where did the FMT take place?
• Was time spent “loitering” before (or soon after) heading southwards into the Indian Ocean?
• Which autopilot mode was engaged (if any)?
• What was the speed of MH370 heading southward?
• What was the speed mode (ECON 52, constant Mach, LRC, etc.)?

The last speed transmitted from MH370 via ACARS at 17:06:43 was Mach 0.821, which renders a True Air Speed (TAS) of 484 knots and a Ground Speed (GS) of 472 knots. The last ADS-B transmission from MH370 at 17:20:35 was a GS of 471 knots, in accord with the preceding.

Victor Iannello in his analysis dated 18th August 2015 of the available radar data  showed that those data are consistent with a speed of Mach 0.84 and Flight Level 340 as MH370 crossed back over the Malaysian Peninsula and then north west over the Malacca Strait.

The maximum cruise speed of the Boeing 777-200ER with Rolls Royce engines is Mach 0.84. The minimum speed with flaps up at an aircraft weight of 200,000 kg and an altitude of 34,000 feet is Mach 0.73, which gives a TAS of 433 knots at an air temperature of -41.0°C (or Indicated Air Speed [IAS] of 250 knots). That minimum speed can be reduced if the altitude is also reduced; for example at 20,000 feet the minimum speed is Mach 0.47, which gives a TAS of 296 knots at an air temperature of -11.9°C (or IAS of 215 knots).

Using my MH370 Flight Path Model I calculated the best fit flight path to the BTO satellite data between 19:41 UTC and 00:11 UTC. I examined all speeds between constant Mach 0.68 and constant Mach 0.84, together with both an early and a late FMT, as well as all autopilot roll modes. I kept the altitude constant at 34,000 feet until 00:11 UTC. (A recent discussion of some of these aspects is available here.)

These modelled flight paths resulted in end points at 00:19 UTC (i.e. on the 7th Arc) lying between 30.5S and 39.3S, considering all speeds, FMT variations and autopilot roll modes.

The results of these calculations for the Late FMT assumption along with a True Track autopilot roll mode are shown in Table 1 below:

In Brian Anderson’s post dated 20th March 2015, he estimated that the GS of MH370 at the time of the closest approach to the satellite of (i.e. the tangent position, which occurred at 19:52 UTC) was 494 knots and the TAS was 484 knots. Brian used a completely independent method to arrive at that conclusion.

Using my model, the best-fit MH370 flight path identified above, with a True Track roll mode from a late FMT at a constant Mach 0.81 on a course of 186.1°T, is shown in more detail below in Table 3.

At 19:41 the TAS is 480 knots and the GS is 486 knots. The TAS is within 1 per cent of Brian’s result but depends on the air temperature of -41.2°C that was assumed in my model, and the GS is within 2 per cent of Brian’s result but depends on the wind speed of 27.1 knots from a direction 84.7°T that was assumed.

I have tried to follow the principle of making the fewest assumptions possible in arriving at the result of 37.3S 89.3E. These assumptions are:

An outcome of this model and therefore this set of assumptions is that MH370 entered the water soon after 00:19 UTC and within 15 nautical miles of the 7th Arc. As can be seen in Table 3, this result is consistent with the fuel availability/expected exhaustion.

ATSB Search Questions
A valid question to ask is this: If the final resting place of MH370 is near 37S and the 7th Arc, and this area has been searched by the ATSB, why has MH370 not been found?

It could be that the assumptions stated above are incorrect. For example, the speed changed or the altitude changed.

However, the question remains whether the sea bed debris has been missed:

• Are the search path swathes, with a width of 1.8 km, too wide for the side-scan sonar currently employed (900 m either side of the tow fish)?
• Is the sea bed extremely rocky and undulating, requiring narrower search path swathes or multiple overlapping swathes in order to ‘see’ into the sea bed troughs?

Comparison of MH370 Flight Paths
Based on Waypoints

Richard Godfrey
1st February 2016

Introduction
Many different flight models have been developed to try and fit the Inmarsat satellite data to plausible flight paths that may have been flown by MH370 under an assumption of autopilot control.

Here are a couple of typical examples:

1. An assumed true track (TT) mode usually results in the choice of a late final major turn (FMT), fitting a course of around 186.2°T (i.e. azimuth 186.2 degrees from true north); this results in a RMS BTO error of 9.2 km and a RMS BFO error of 3.7 Hz. (RMS = root mean square; BTO = burst timing offset; BFO = burst frequency offset).

2. A magnetic heading (MH) mode usually results in the choice of an early FMT, fitting a course of around 193.8°M (i.e. degrees from magnetic north), which results in a RMS BTO error of 18.3 km and a RMS BFO error of 3.9 Hz.

There are, of course, many other conceivable flight paths depending on assumed values for the location of the FMT, the speed mode, the altitude, step climbs, lateral offsets, winds, magnetic declination, etc.

Background
There are two problems in particular with these typical flight model examples:

1. The BFO error obtained at 19:41 UTC is much higher than at other times later in the flight: around 8 Hz compared with a typical BFO error of between 1 Hz and 4 Hz.

2. The BFO data for the first attempted phone call shows a fairly steady path for 61 seconds (between 18:39:55 and 18:40:56 UTC) near either 161°T or 200°T (i.e. at azimuths close to equal angles each side of due south).

In order to see if these two problems could be resolved, I have examined alternative flight paths using a single waypoint entered into the Flight Management System (FMS) as opposed to a course selected using the heading bug; Mike Exner has argued that, if waypoint navigation were used after the FMT, then it is more likely that a single waypoint was entered.

Method
First, I entered each possible single waypoint from both an ‘Early’ and a ‘Late’ FMT (at times and locations shown in Table 1 below) into my flight model. I kept the altitude constant at 34,000 feet and speed constant at Mach 0.817 in all cases.

Next, I determined the RMS BTO and BFO errors in each case from 19:41 to 00:11 UTC (Table 1 below); I also noted the BTO and BFO errors at 19:41 UTC (Table 2 below).

Results
The results are given in the tables below. Green is used to highlight the best result, orange for the second best, and yellow for BTO errors below 50 km or BFO errors below 4 Hz.

Table 1: Derived RMS BTO and BFO errors for assumed paths to the waypoints as indicated in the far-left column for Early and Late FMTs at the locations shown.

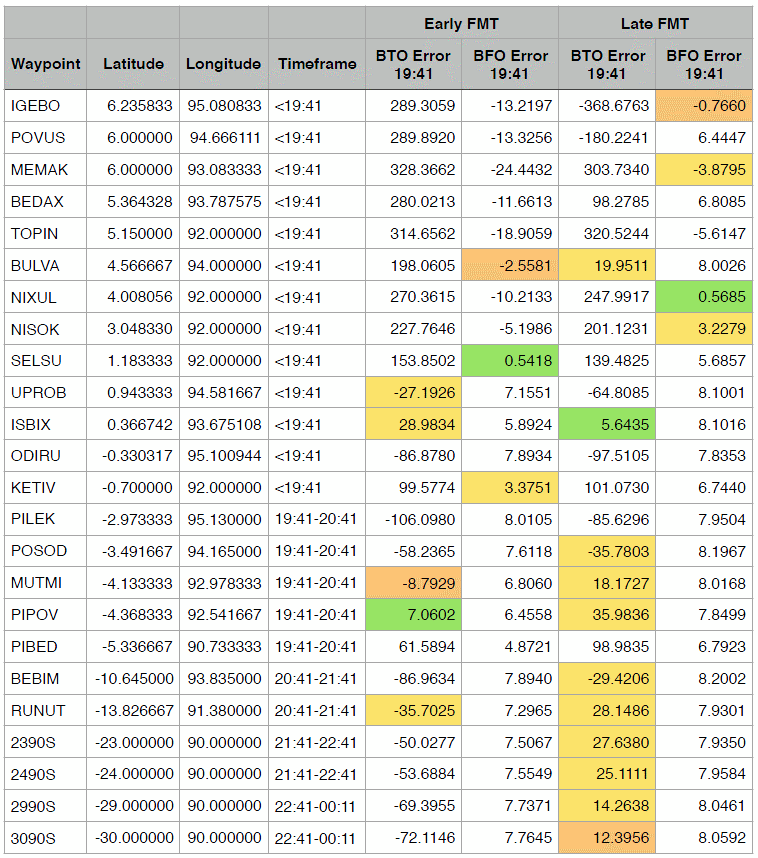

Table 2: BTO and BFO errors at 19:41 UTC for paths to waypoints as shown from both Early and Late FMTs as defined in Table 1.

Discussion

• The BTO error is clearly a better differentiator of the results than the BFO error.
• The result with the smallest BTO error is not the same as the result with the smallest BFO error (the plot of BTO error against BFO error gives a smooth curve for both early and late FMTs).
• It is easier to find results with a small BTO error with a Late FMT.
• The result with the smallest RMS BTO error was the waypoint 3090S with a Late FMT (as Don Thompson has previously suggested).
• The result that gave the smallest BTO error at 19:41 UTC was the waypoint ISBIX with a Late FMT.
• The smallest BFO error at 19:41 UTC was the waypoint SELSU for an Early FMT (course 215.6°T) and the waypoint NIXUL for a Late FMT (also course 215.6°T).
• Because these smallest BFO errors at 19:41 UTC result from a course of around 215°T and this was also not far off the possible path at 18:39:55 to 18:40:56 UTC (as mentioned above), further investigations were undertaken, as below.

Further Investigations
Using pairs of waypoints, the best result obtained was for ISBIX and 3090S; but this still did not solve the BFO problems at the time of the first phone call (near 18:40) or at 19:41 UTC.

However, using triplets of waypoints, the trio NISOK, ISBIX and 3090S led to a solution to both problems:

1. The path obtained at 18:39:55 to 18:40:56 UTC was 208.9°T, which gives a BFO error of -2.6 Hz and a constant course during the timeframe of the first call.

2. The BFO error obtained at 19:41 UTC is just 0.5 Hz.

3. The overall RMS BFO error is 1.7 Hz.

NISOK is a waypoint between waypoint SELSU and waypoint NIXUL, and on the same longitude (see Table 2).

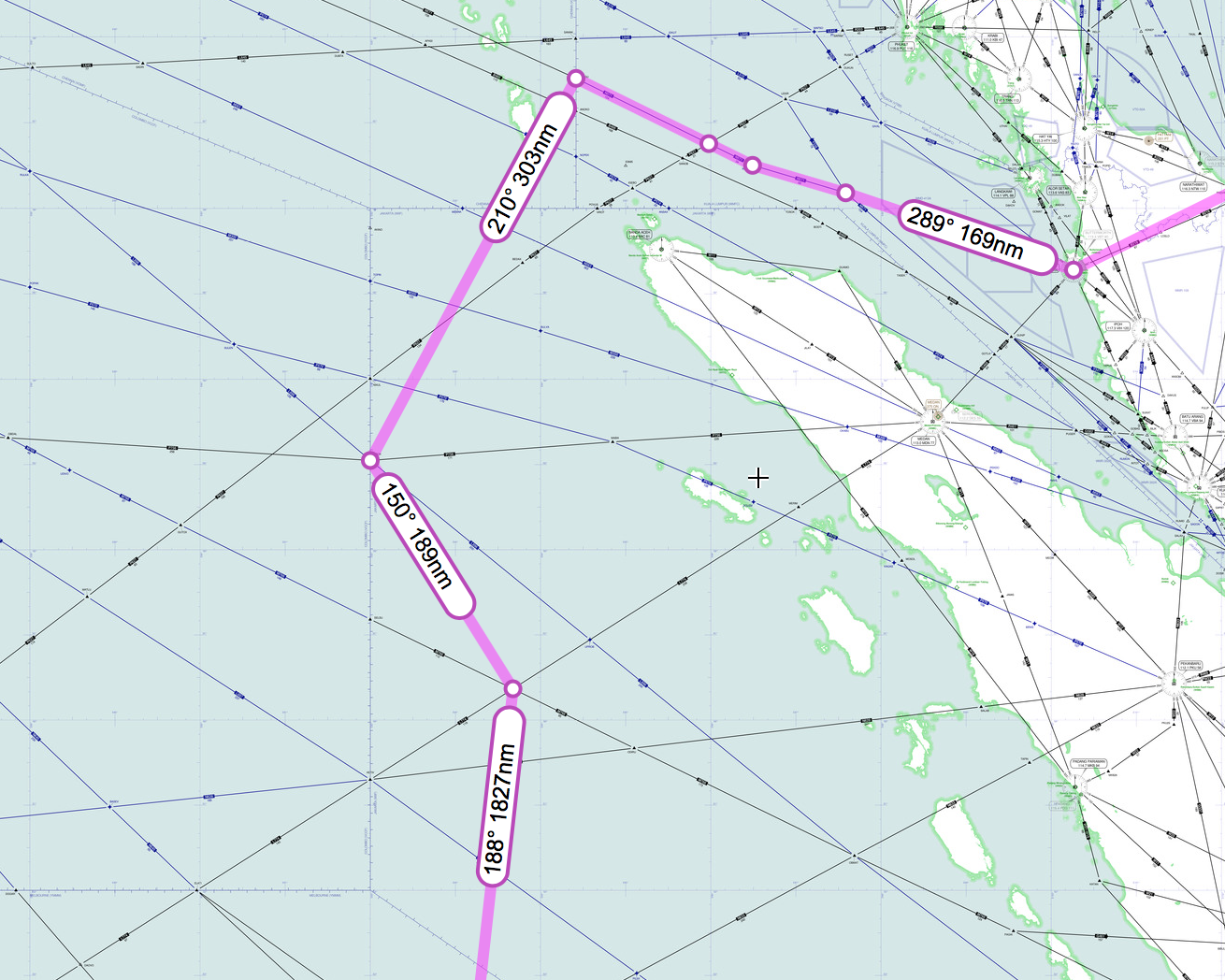

The resultant flight path is shown below. It could be argued that such a path might be that followed by someone wanting to avoid Indonesia to the extent possible, whilst confusing any observer as to the ultimate intention*.

It is also noted that this path fits the location and directions of the suggested sightings by Kate Tee, although the timing is out by 30 minutes from her evaluation of the time in question (which is acknowledged to be a possibility).

*Note added by Duncan Steel: A contrary argument would be that the ultimate disappearance of MH370, and in particular its apparent non-detection by Indonesian radars, is conditional upon such a path having been taken. That is, such a path having been taken either accidentally or automatically (i.e. no pilot intent) results in the aircraft’s disappearance, and if such a path had not been taken then we would be more likely to know where it went. The path that Richard has suggested, based on detailed analysis, might be considered to have a low probability a priori; but a posteriori it might be that the disappearance of the aircraft is contingent upon that path (or one very much like it) having been followed, whether by chance or by intent.
